INTEGRITY PLUGZ

DRAIN PLUGZ

Water Indicator

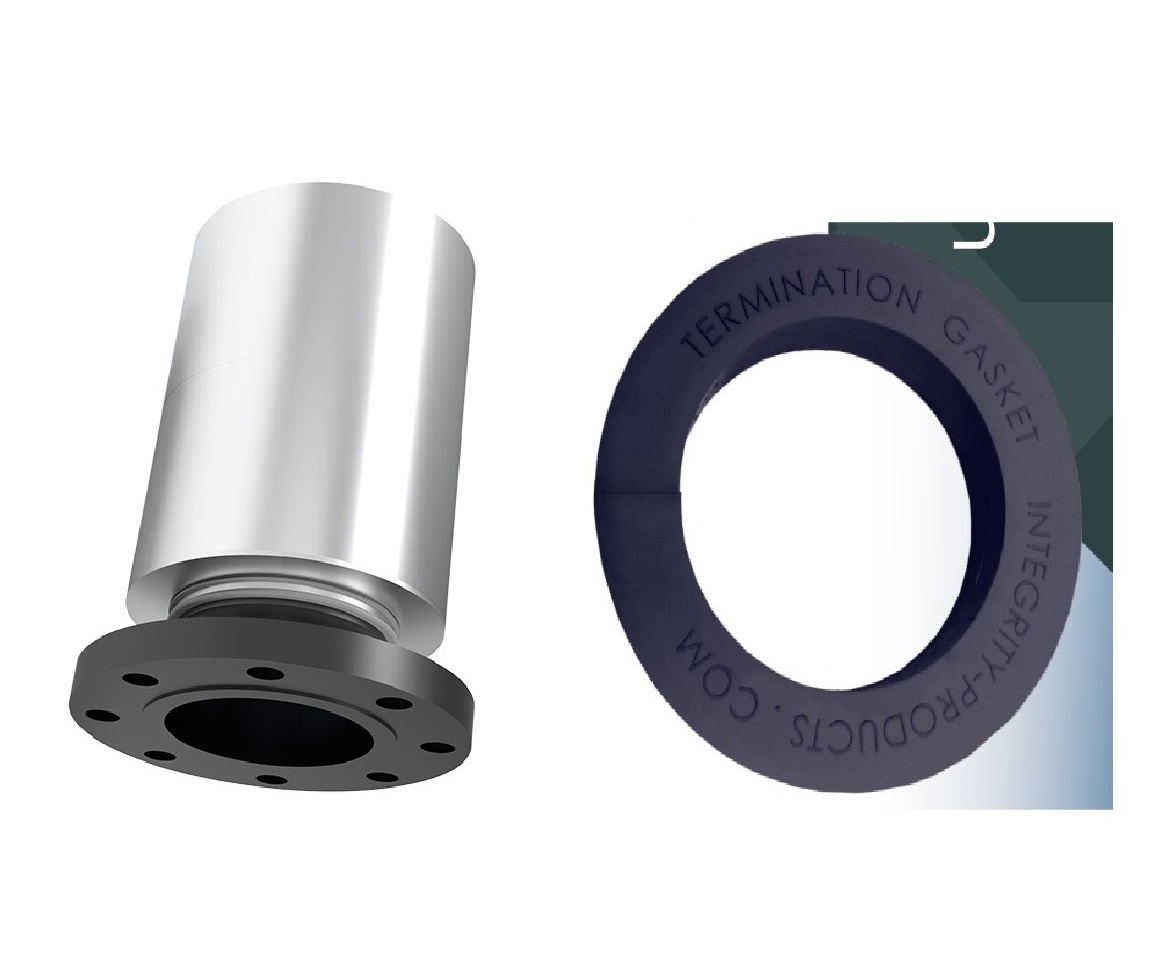

TERMINATION GASKET

Integrity Products Termination Gasket compartmentalizes your pipe insulation system. Installed at regular intervals or at strategic locations, the Termination Gasket will stop moisture travelling along an insulation system and destroying the insulation. By containing any leaks or water ingress, you can potentially save millions of dollars on the removal and install of insulation. The Termination Gasket is non-metallic providing complete watertight solution in comparison to metal end cap terminations, saving future maintenance costs and failures due to corrosion under insulation (CUI). Made solid state silicone rubber, Integrity Products Termination Gasket is self-extinguishing, non-melting in fire, and halogen free.

INTEGRITY CLAMP COVERS

Integrity Products’ Integrity Clamp Covers™ are designed to make it quick and easy to seal protrusions around pipe clamps on insulated piping systems. These clamp covers are made from a high-performing EPDM rubber for extra protection against temperature, mechanical damage, weathering, and UV and ozone exposure. The task of trying to install cladding around pipe clamps on insulated piping systems has traditionally been very difficult—requiring an excessive amount of time from even a skilled tradesperson to complete! Now with Integrity Clamp Covers™, you can achieve a neat and tidy finish with a watertight seal in a fraction of the time.

TERMINATION SEAL

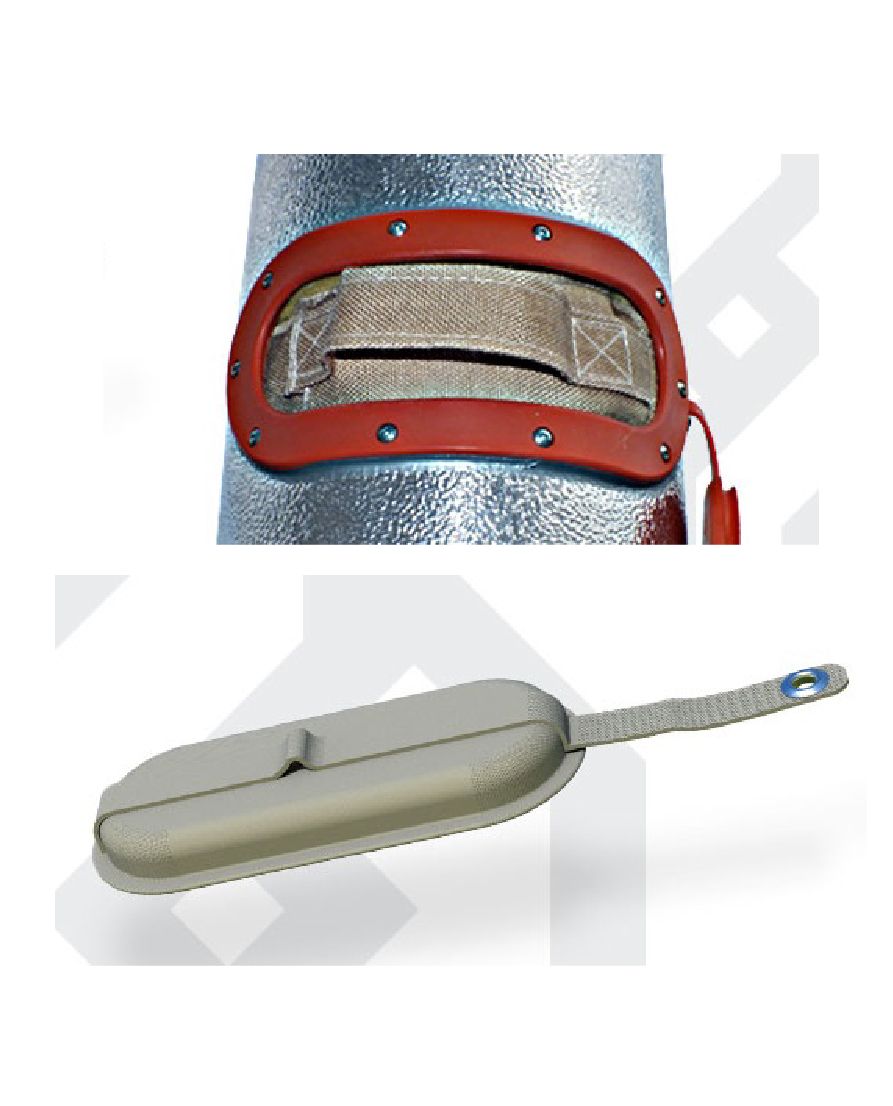

INTEGRITY PILLOWS

Integrity Pillowz™ are made from high performing Vermiculite Fabric for extra protection against high temperature applications. Integrity Pillowz™ can provide temperature resistance up to 1100°F (593.3°C). The Integrity Pillowz™ also includes a lanyard that integrates with the Integrity Plugz™ inspection ports to avoid loss. The Integrity Pillowz™ come standard with a pull handle to make removal simple.

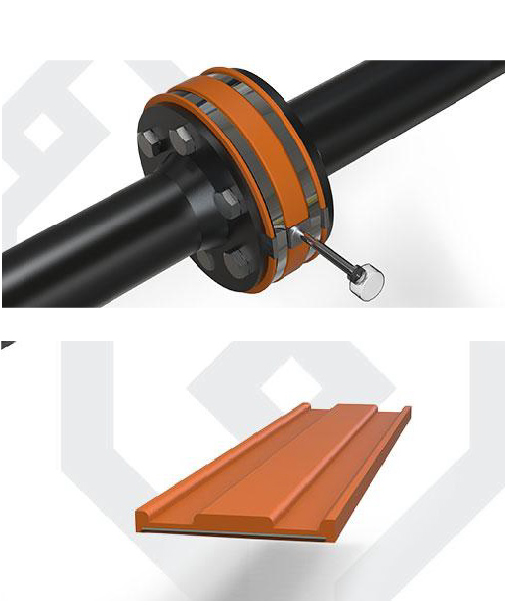

FLANGE BELT

Integrity Product flange belts provide a circumferential seal over the adjoining collars of flanges. This offers long term protection from external corrosive elements. The adjoining faces of flanges with gaskets generally form crevice which traps moisture, this allows development of crevice corrosion and may lead to process leaks.

INTEGRITY CRYOGENIC PLUG

Integrity Products Cryogenics Plugs are specially designed for cold service applications, these ports are manufactured as a simple 3-part assembly for cold service insulated piping systems. The first component on the Cryogenics Plug consists of the Plug itself with the addition of an aluminum ring with inserts for banding applications; second an insulation insert made from a closed cell foam material with and PTFE strap that is mechanically mounted into place; third a PTFE sleeve that can be cut to insulation thickness, this also protects against air infiltration under the insulation and serves as a barrier for the foam pillow creating a suction type fit, a thermal brake designed at the base of the sleeve to curve around the outer diameter of the pipe

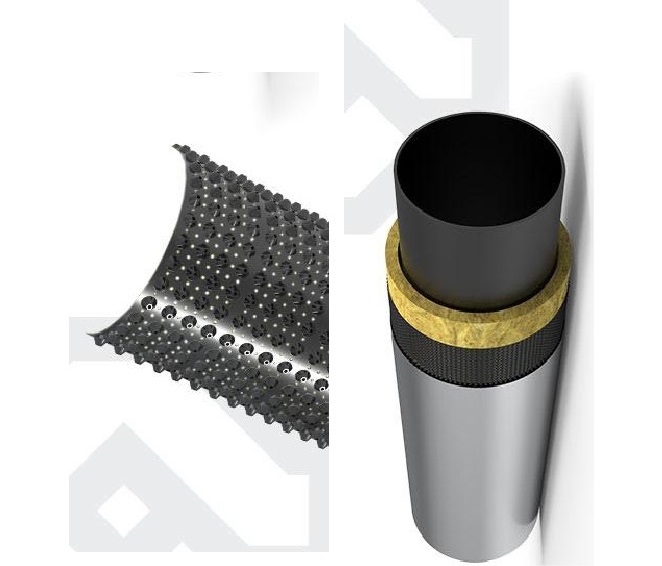

INTEGRITY PERFORATED DIMPLE WRAP

Integrity Products’ Perforated Dimple Wrap is designed to create a consistent 6mm air gap between the insulation and the metal cladding. Used in conjunction with our vents and drains, this 3-part system creates the Integrity Products’ Insulation Ventilation System. This high-quality Polyvinyl Chloride (PVC) material is design for flexibility and strength which can help protect the insulation and the outer cladding from mechanical damage. Its unique perforations and raised dimples allow any moisture or vapor trapped in the insulation to pass into the gap that has been created, drain to the 6 o’clock position, and exit the system through the drains.

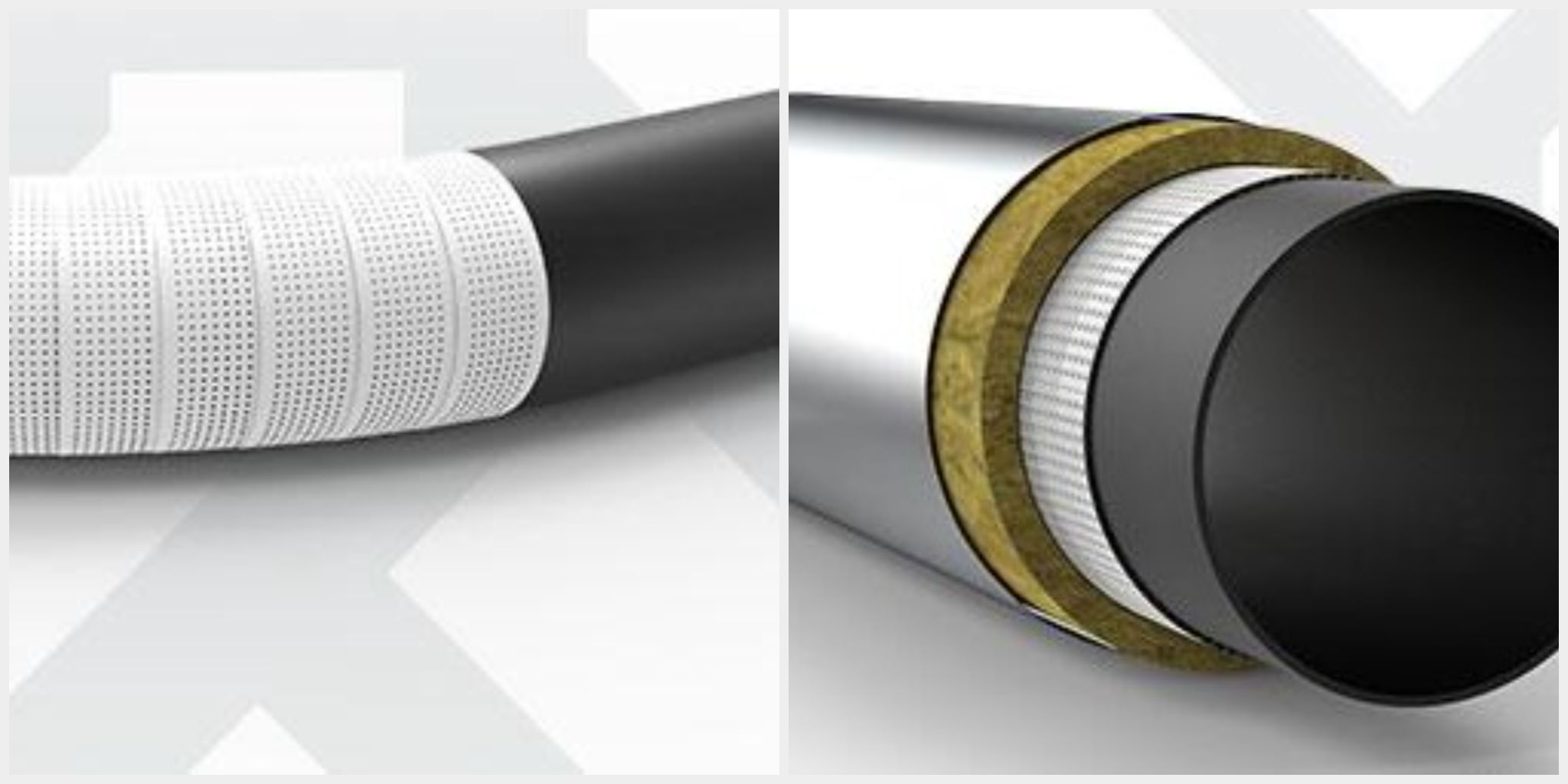

IVS AND PTFE SYSTEM
