Our Products

COSASCO PRODUCTS

INLINE PROCESS/ FLUID CORROSION AND EROSION MONITORING

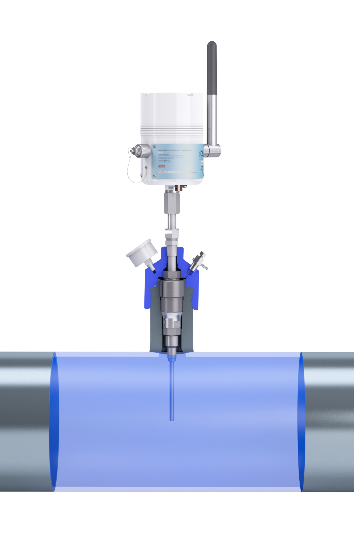

MICROCOR®

Highest Resolution Measurement of any Corrosion and Erosion instruments

Monitoring the corrosivity of the fluid in the line
Helping to optimize Chemical Inhibitor dosing
Wireless/Wired/Data Logger options
Wireless HART and ISA100 communications available
Transmitters rated for Hazardous Environments
Real time Data to DCS or desktop
Analytical Data software for better informed reactive decision-making power
Multiple access fitting configurations (Welded, Flanged, Retractable & Low pressure)

Column

WELL TESTING AND EROSION SERVICES VIDEO

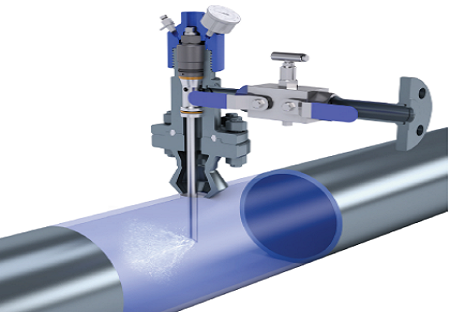

CHEMICAL INJECTION

Column

CHEMICAL INJECTION VIDEO

Safe controlled chemical injection
Fully retrievable injection devices for unblocking/servicing –ONLINE
Avoid costly unplanned shutdowns
Control corrosion with accurate dosing
Robust side tees with assembly's Double block and bleed valves
Variety of Injection Tubes, quills and nozzles
Meets NACE Standards
From basic Carbon Steels to Exotic Alloys
Powerful in conjunction with Microcor ER probes

COSASCO’S WATER & WASTE-WATER LPR MONITORING SYSTEMS

Ideally suited to aqueous solutions (Fresh water and wastewater treatment systems, Cooling water systems & Water distribution systems)
Instantaneous corrosion rate change detection
Is used in combination with electrochemical techniques such as polarization, AC impedance and electrochemical noise measurements.
Used to monitor effectiveness of corrosion inhibitor programs
Rapidly detects corrosion rates in water-based environment

DCMS

DCMS - Cosasco’s Downhole Corrosion Monitoring System provides corrosion and temperature data close to the reservoir exit point or within the tubing at specified points. Good for material selection of future wells.

Column

SpecificationsSpecifications

Column

COSASCO CORROSION MONITORING VIDEO

Column

NON-INTRUSIVE MONITORING

Column

ECHO POINT®

Monitor known troubled locations at big cost savings to manual UT
Piezoelectric sensors = Most sensitive to detecting corrosion (up to x3)
Measures rough non uniform surfaces
Up to 500 degrees C – (Refinery application)
Through coating monitoring ability
Minimum pipe diameter - 2”
3 transducers choices for flexibility (UHT – 500°c, Dual - Pitting & Thru-Coating)
Ex ia Zone 0 Hazardous rating – Put them anywhere
HART & ISA100
Compatible with Cosasco Data software

ECHO POINT

SpecificationsSpecifications

Column

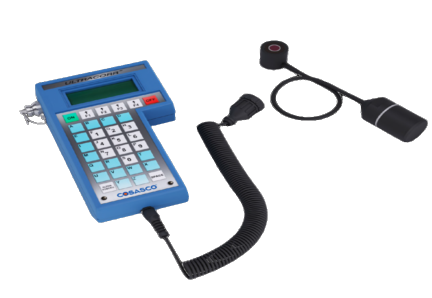

ULTRACORR®

Ultracorr®’s underground ultrasonic sensors provide a highly accurate, non-intrusive, and economical way to monitor corrosion. Additionally, these can be paired with the 620HD ER Probe for an integrated corrosion monitoring solution.

Column

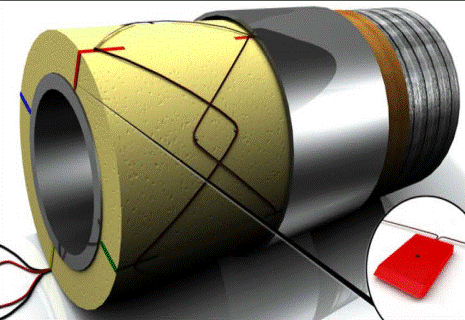

CUI

CUI Probe Array Sensor provides discrete measurements of the corrosion rate near the pipe surface. CUI Corrosion Fuse Wire sensors detect corrosion over a large area.

CUI PROBES AND SENDORS

SpecificationsSpecifications

Column

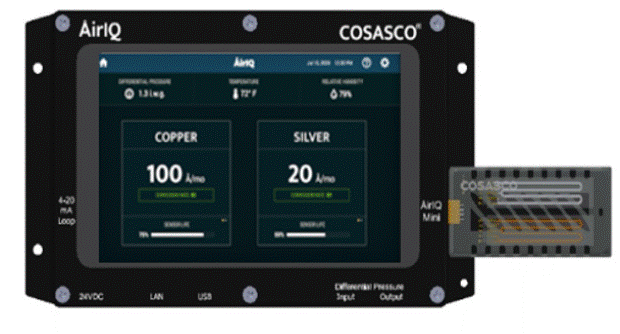

ÅIRIQ ATMOSPHERIC

ÅirIQ measures the effects of airborne contaminants. Combining corrosion data with other environmental parameters is key to protect critical assets in any controlled environment.

Column

ACOUSTIC SAND MONITORING

Sand Problems Topside and Subsea we have you covered.
Subsea system for non-Intrusive wall thickness monitoring
Reliable operation., Confidence for subsea.
Enhanced data reliability.
Self-diagnostic tool.
Extensive reference list for topside and subsea systems
Integration with DCS/Scada or separate provided server
Separate sand monitoring software

Column

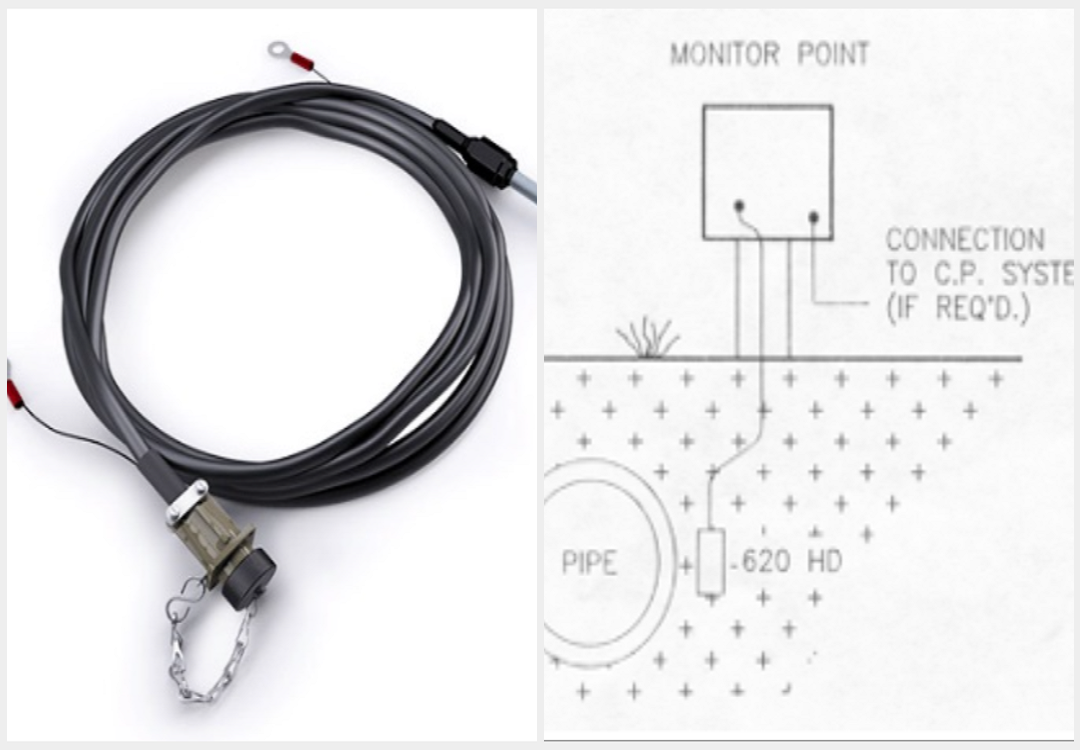

COSASCO’S HEAVY DUTY UNDERGROUND (ER) PROBES 620HD/650

620HD is the heavy duty designed for sub surface applications
650 is economical and durable.
Utilized within CP Systems to prove the effectiveness of the implemented CP system.
When not connected to CP, the probe monitors the corrosivity of the surrounding soil
CP system connector leads at both ends of probe and cable for ease of installation and connection to CP systems
Long lengths of cable as required
Utilized in Tank Farms and for concrete monitoring (Re-Bar)
Different sensor element choice dependent on corrosion appetite, T10, T20 etc..
Almost always specified in CP systems globally.

HD UNDERGROUND ER PROBE (620HD/650)

SpecificationsSpecifications
